AHT12 SPECIFICATIONS

AHT12
AHT12
Ke staženíTS AHT12


DESCRIPTION

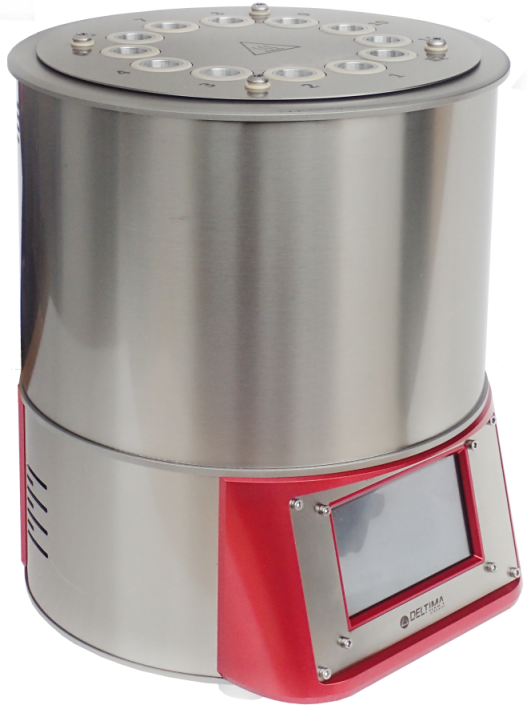

Abel Heat Tester apparatus consists of a main controlling unit with an LCD touch screen interface which is inbuilt into the main block. The main block with the main controlling unit presents a standalone independent device.

The main block includes an aluminium heating block with 12 holes for glass tubes. The exact design is always defined by a followed standard. Heating elements are controlled by means of precise PID electronics and independent overheating protection. The position of heaters provide excellent heat distribution and efficient insulation keeps low power consumption.

Abel Heat Tester is modular and allows easy conversion to follow another version of the testing standard. Set of glassware and depth limiters fulfil requirements of all major Abel based testing methods.

COMPLIANCE

STANAG 4178, DEFSTAN 13-189/1, AOP-7, ČOS137601

ADVANTAGES

A standalone device with colour LCD touch screen interface
Independent timer for each position
Accurate temperature controlling
Independent overheating protection
External calibration
External PC controlling via USB (optional)
Remote heating lock (optional)

TECHNICAL SPECIFICATIONS

Sample positions 12
Temperature accuracy ± 0.1 °C
Predefined temperatures 65.5 / 76.6 / 80.0 °C
Temperature  limit +160 °C
Size (WxDxH)  25x30x30 cm
Weight 30 kg
Electrical rating 230 VAC / 50 - 60 Hz
Power rating 400 W
